Spline in Blocs

[davideakadudu]

Hi, I’m testing a brand new app called Spline (https://spline.design). with it we can make very nice 3d elements for web, but I can’t understand how to embed the scene of spline in Blocs.
I can export from spline in different ways, but I would need help from someone to understand how, and how to embed it for example in the homepage of a Blocs project.
thank you very much

[PeteSharp]

Funny enough, I downloaded this the other day too. I haven’t had a play yet though.

[davideakadudu]

that’s the problem, if I embed the code in the html bric I don’t know how to set the adjustments to make it fit on the screen (full screen as splash screen).

[davideakadudu]

yes it’s quite simple to use and the results are funny and look very nice.

[davideakadudu]

it doesn’t work

[davideakadudu]

iframe src=‘icon_cloud’ frameborder=‘0’></iframe
this is the code it gives me

[Pealco]

Hello, so I was able to make it work so you have to follow the next instructions to make it work (this option makes the animation hosted, not using iframes):

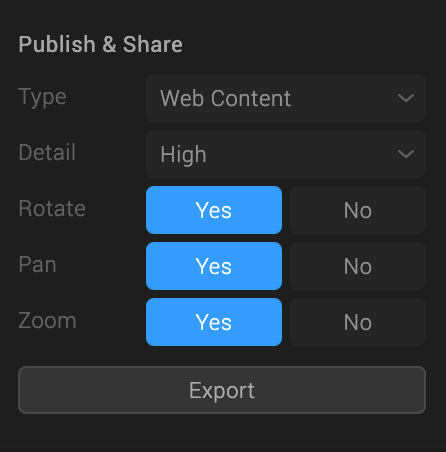

1º - In Spline export as Web Content in High Detail:

2º - You will find the following folder structure:

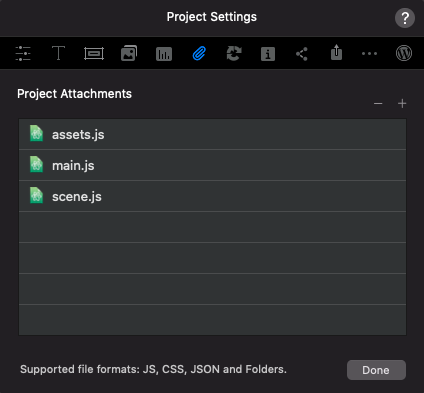

Simply add the 3 files from the js folder and import them to Blocs in project settings:

3º Add a “Structure One Column” to the page:

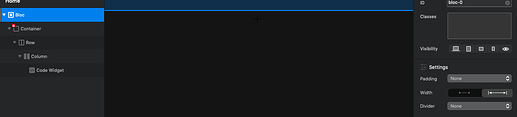

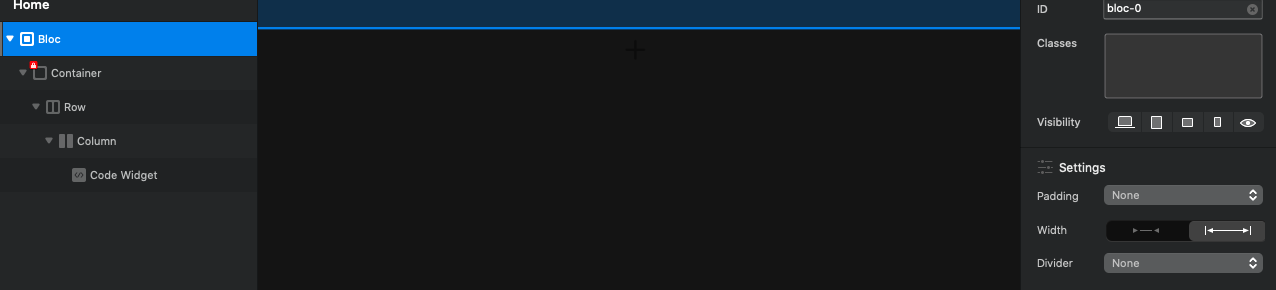

4º - Press (select) The “Bloc” on the left side and on the right side change the options to the following ones:
Padding - None
Width - Full <---->

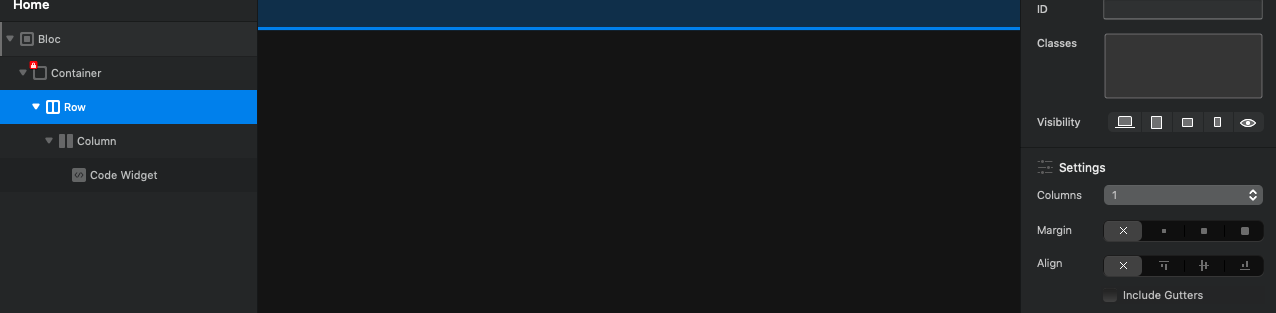

5º - Press (select) the “Row” in the left side and in the right side deselect the option: “Include Gutters”

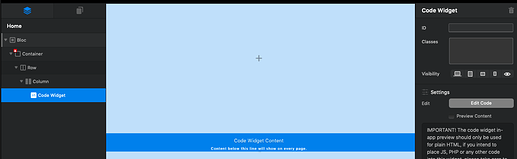

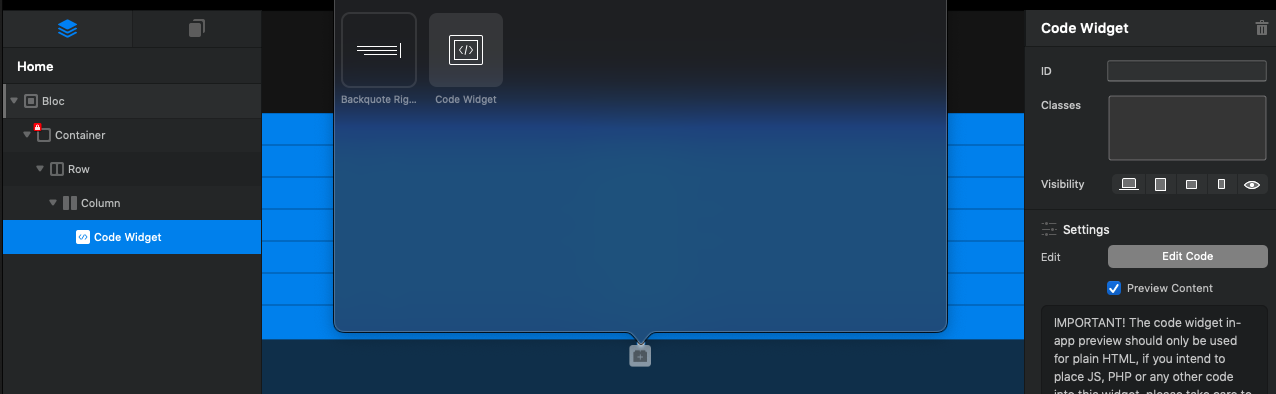

6º - Add a “html code” bric inside the structure you create in the 1º point:

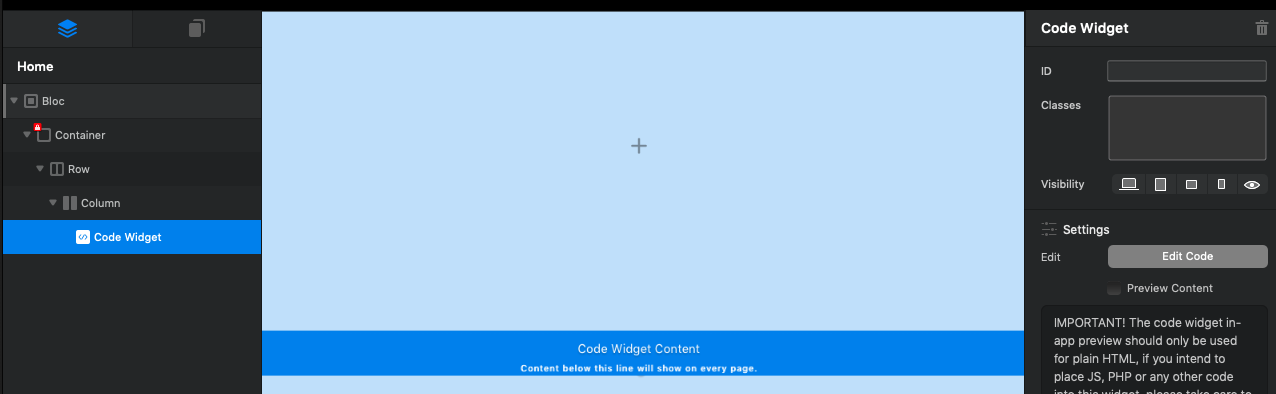

7º - Remove the “Preview Content” in the right panel options:

8º - Add the following code inside the “HTML CODE” bric:

<div id="container"><canvas id="canvas3d"></canvas></div>

<style>
body {
	width: 100%;
	height: 100%;
	margin: 0;
	position: fixed;
	background: rgba(18.74999999999999,18.74999999999999,18.74999999999999, 1)
}

canvas {
	width: 100%;
	height: 100%;
	outline: none; }

#container {
	width: 100%;
	height: 100%;
	position: relative;
}

</style>
<script>
// Global namespace (backwards-compatibility)
var SPE = {};
</script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r121/three.min.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/animejs/3.2.1/anime.min.js"></script>
<script src="https://cdn.spline.design/lib/spline.runtime.min.js"></script>
<script src="./js/assets.js"></script>
<script src="./js/scene.js"></script>
<script src="./js/main.js"></script>

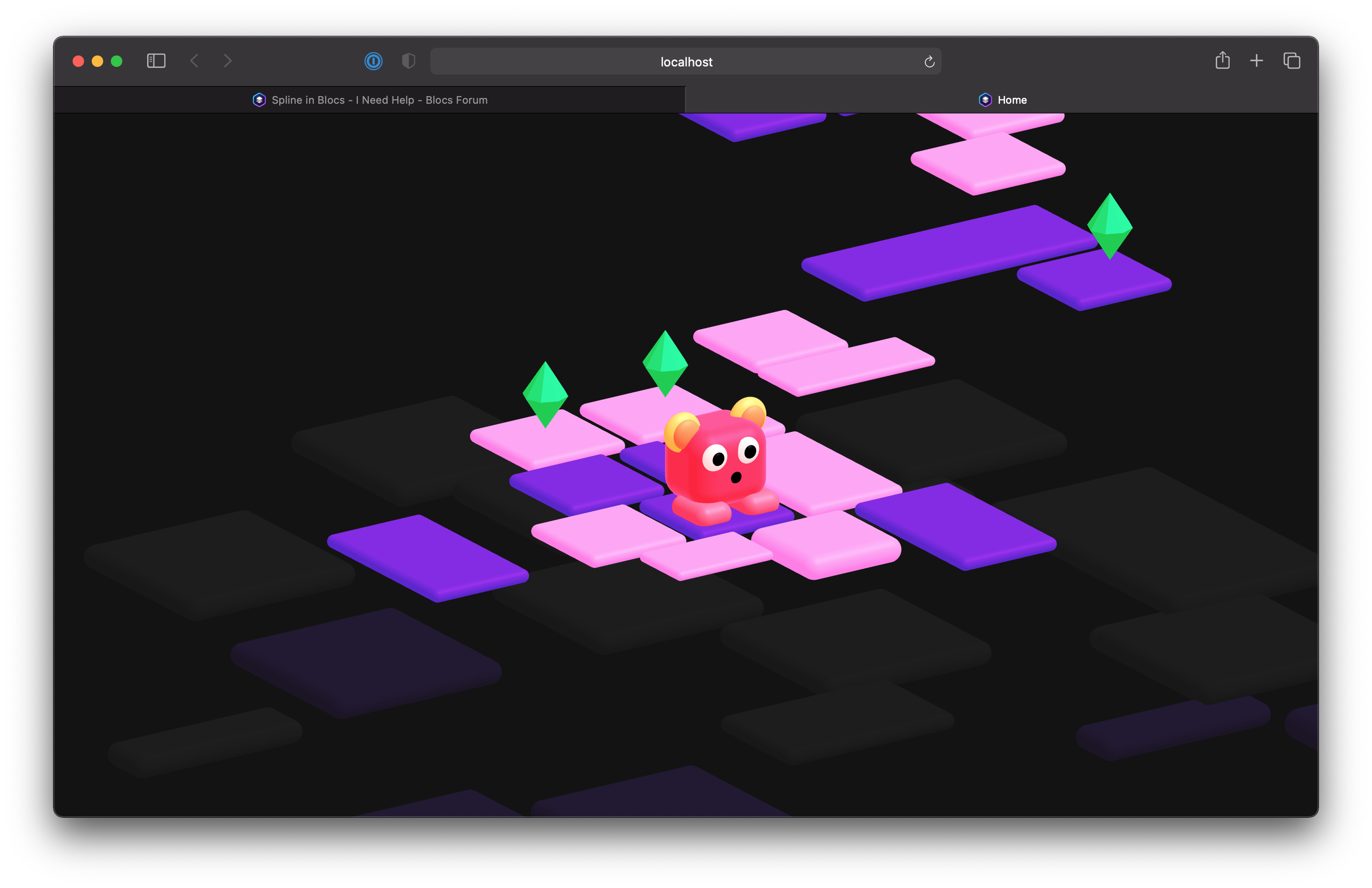

And there you have the result:

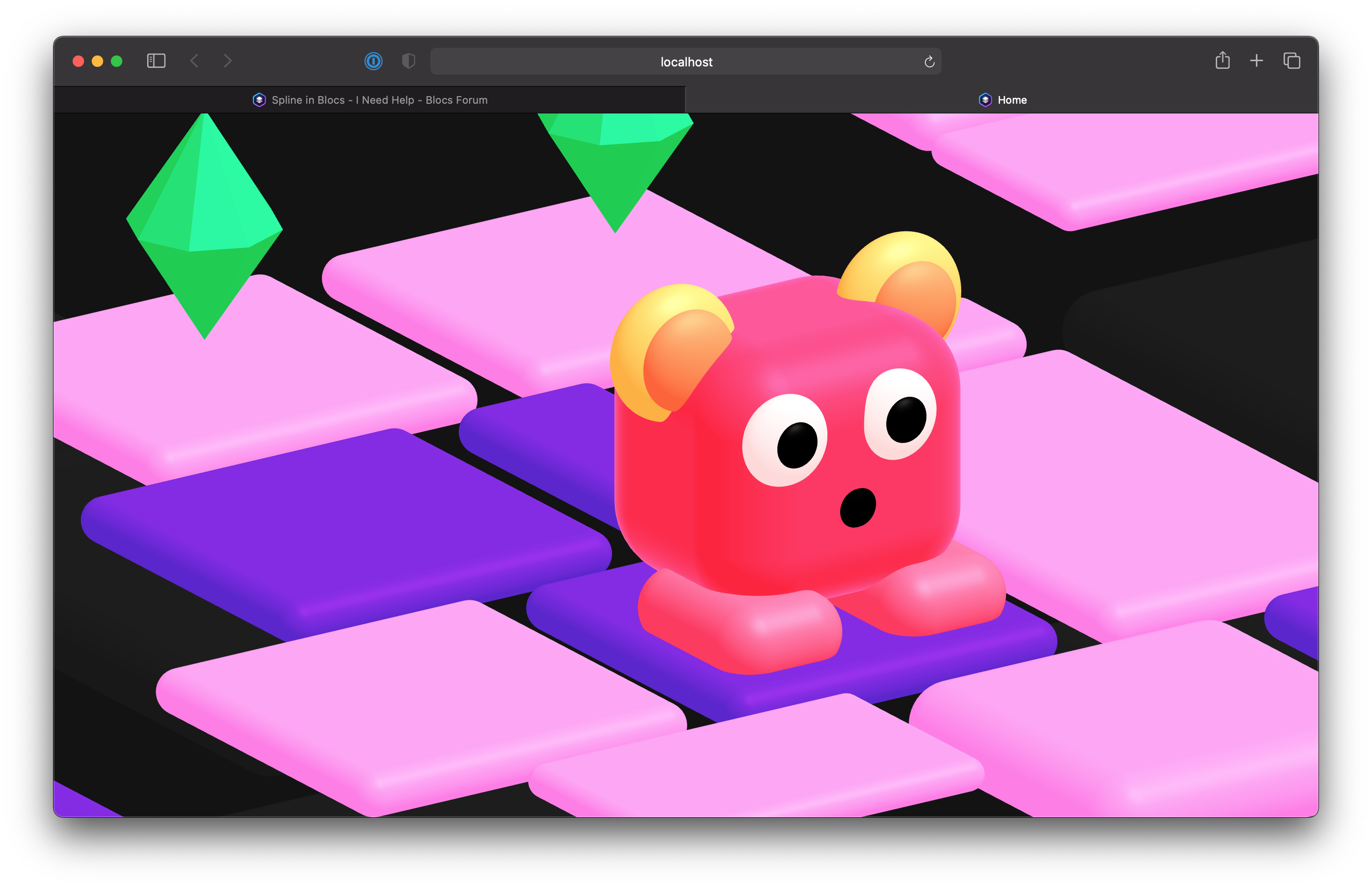

As you see full edge to edge animation…

Hope it helps you…

[davideakadudu]

I’ll try immediately!!! thank you very much @Pealco

[Pealco]

If your project works with fonts or another things just let us know the folder structure and we will try to help you…

[davideakadudu]

for the moment I’m just testing it.

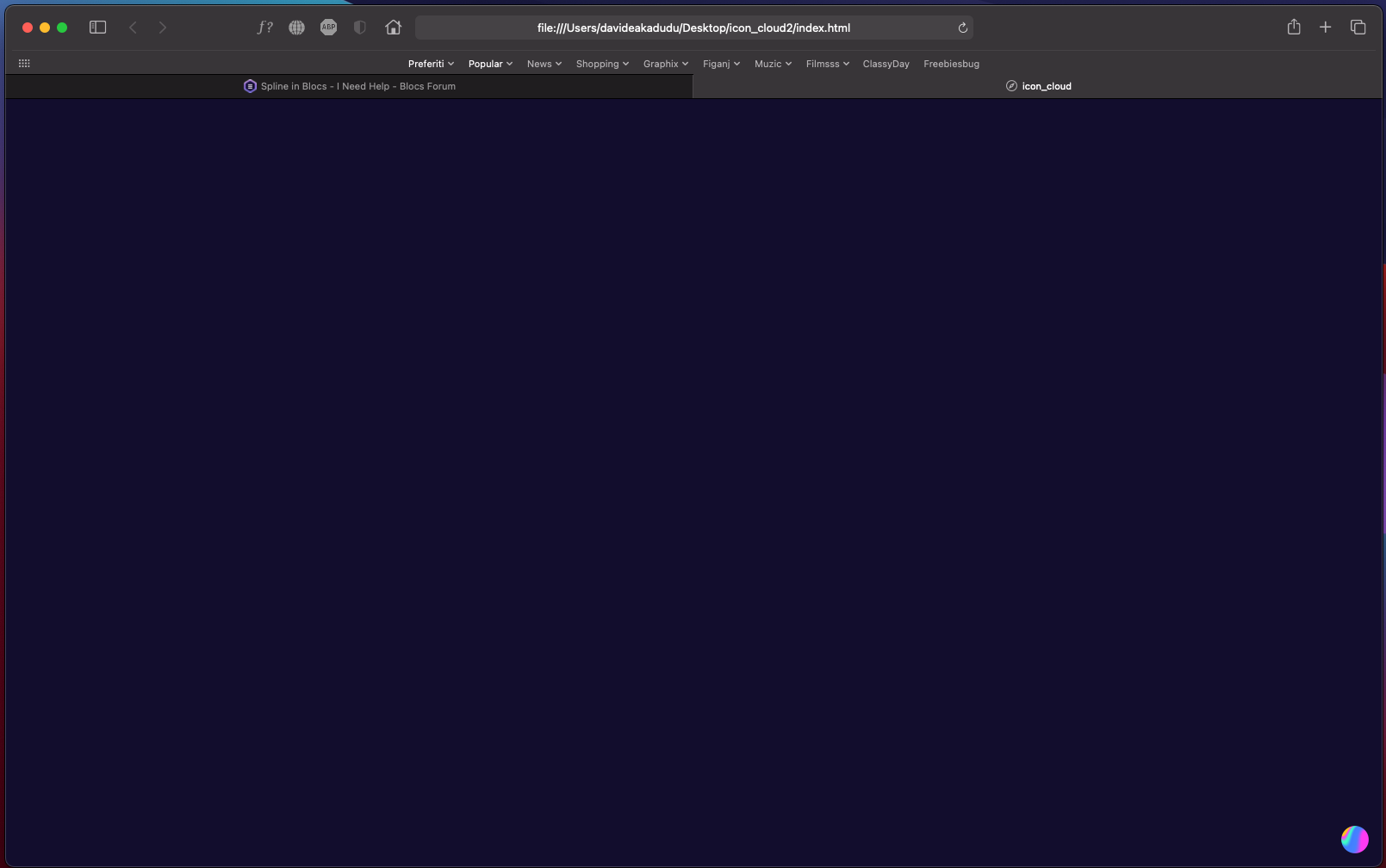

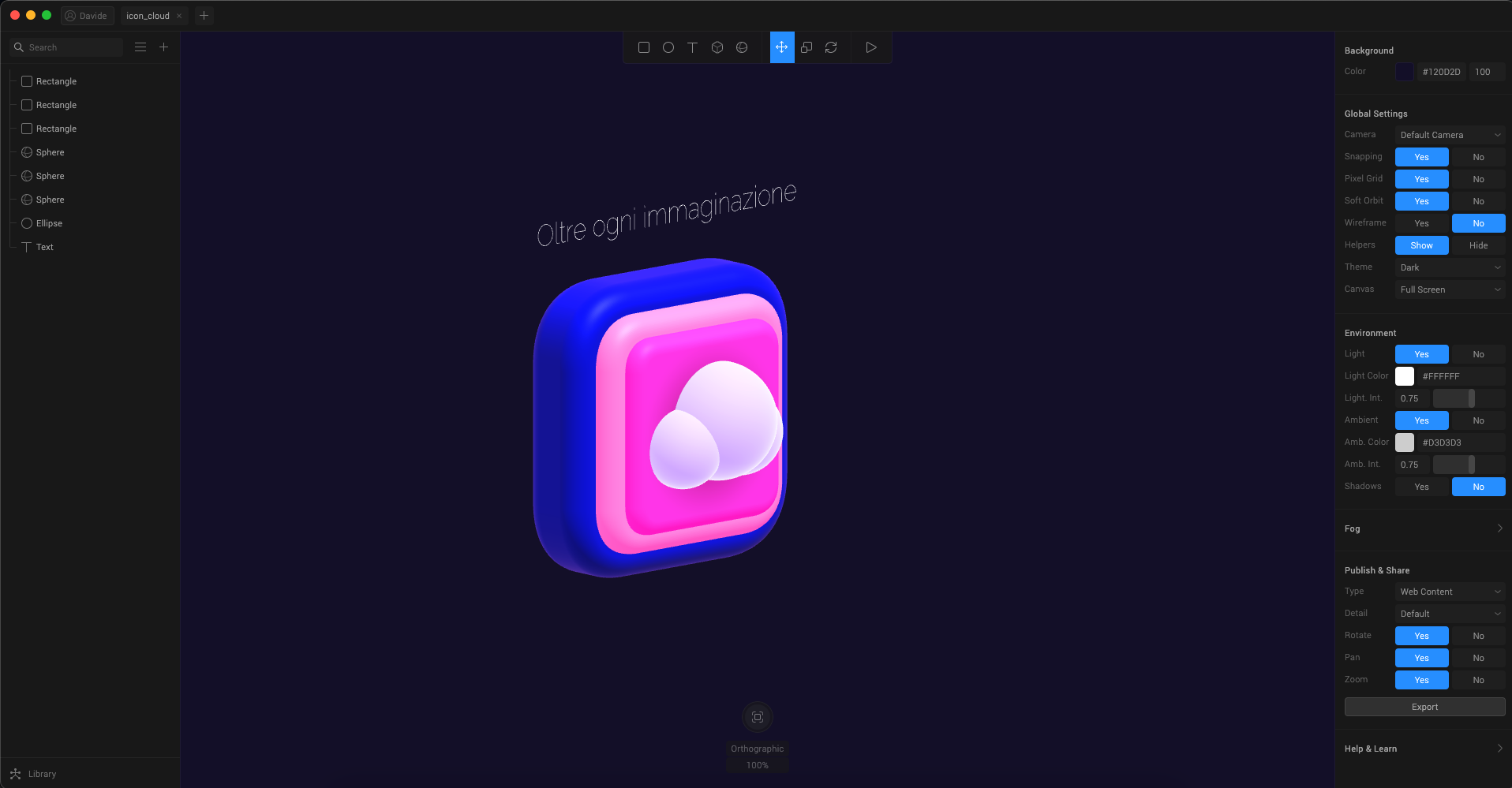

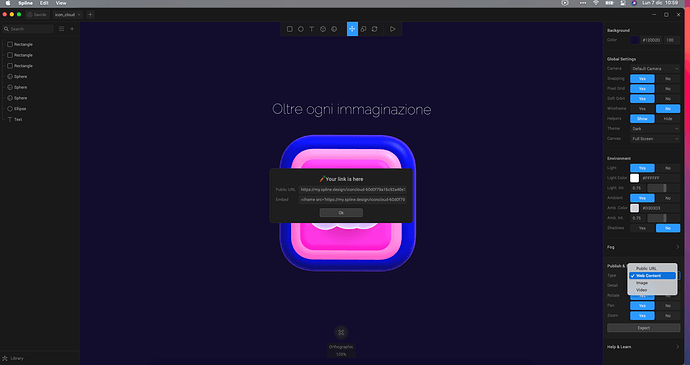

now the problem is that if I export as web content what you can see in the screenshot (which is just a premade example in Spline with a text), it gives me what you see in the second screenshot (nothing),.

[Pealco]

@davideakadudu

icon_cloud

If you really need to do with iframe do as this:

1º Add a “Structure One Column” to the page:

2º - Press (select) The “Bloc” on the left side and on the right side change the options to the following ones:
Padding - None
Width - Full <---->

3º - Press (select) the “Row” in the left side and in the right side deselect the option: “Include Gutters”

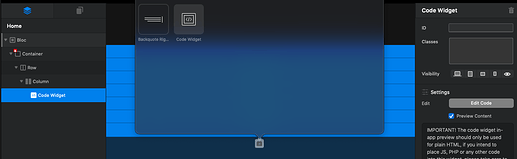

4º - Add a “html code” bric inside the structure you create in the 1º point:

8º - Add the following code inside the “HTML CODE” bric:

<iframe src="https://my.spline.design/iconcloud-60d0f79a16c92a40e102ecc2e5e2eae9/" frameborder="0" allowfullscreen=""></iframe>

<style>
body {
  margin: 0;
}

iframe {
  height:calc(100vh);
  width:calc(100vw);
  box-sizing: border-box;
}
</style>

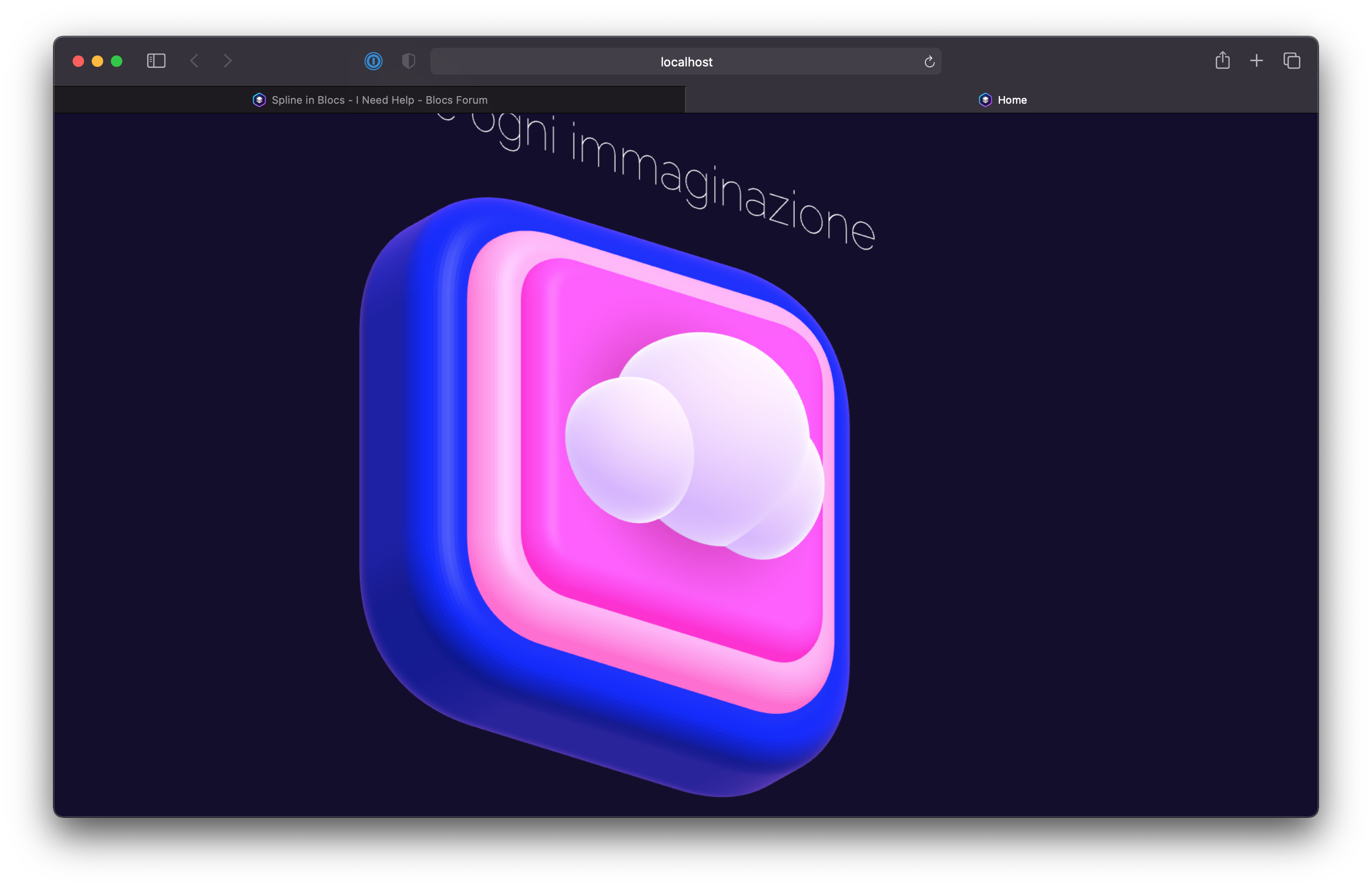

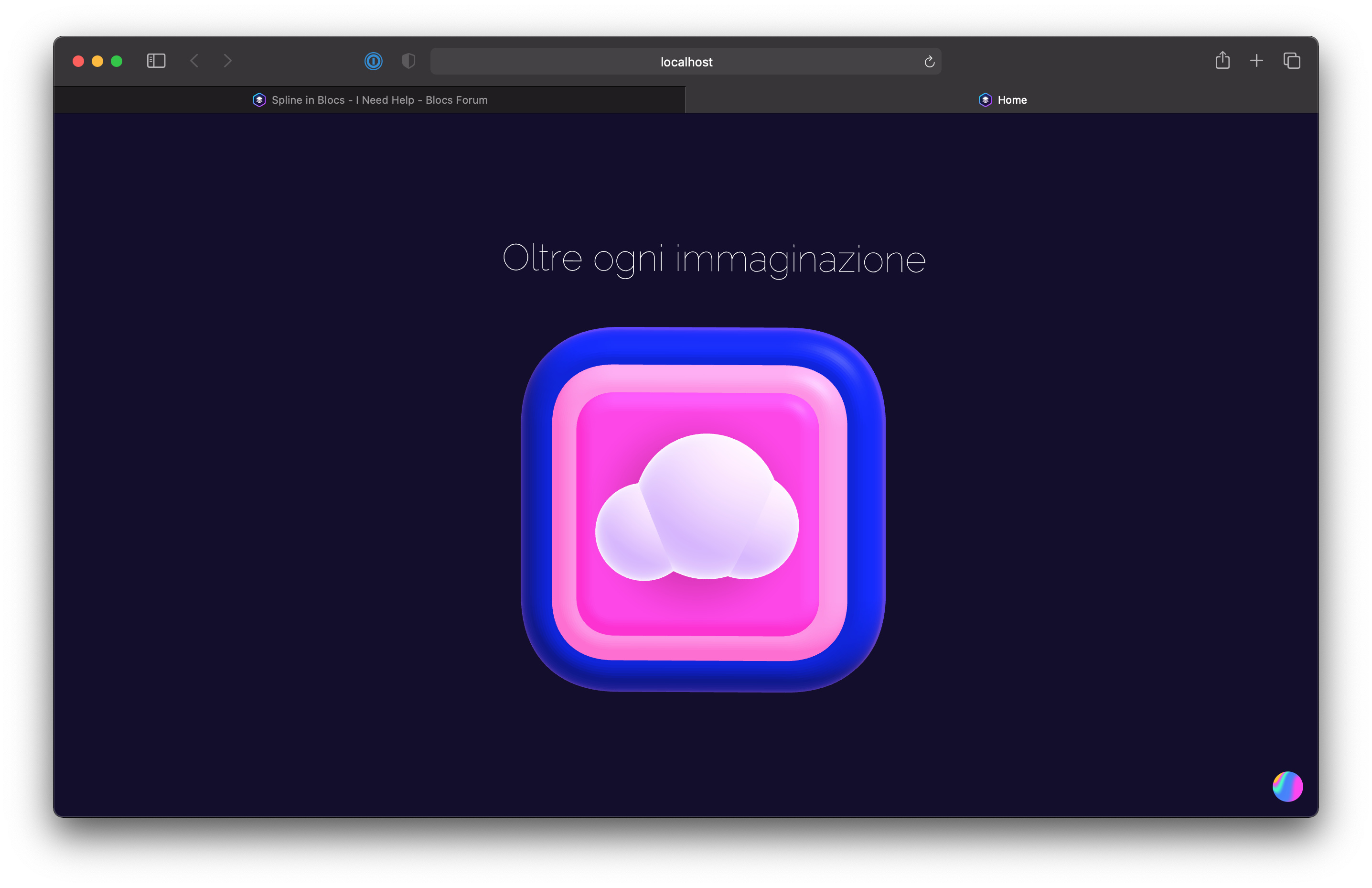

And there you have the result:

Hope it helps you too…

[Pealco]

Yes because you use fonts and the fonts when you try to preview in localhost it gives you the error:

So you have only one option, you need to publish the site to preview it, as you can’t change the server of Spline:

XMLHttpRequest cannot load XXX No 'Access-Control-Allow-Origin' header

So you have two options:

• iframe and I give you one method to achieve full screen in my second post
  or
  -Publish every time you need to preview…

Hope it helps you…

[Norm]

I need to try this app it looks awesome!

[casey1823]

@Norm Like you need something else to do?

casey

[Mattheus]

I was very curious too. But I get no verification mail… Waiting for hours now…

[Norm]

Yeah maybe next year

[Pealco]

If you can please, make Solis working with JS…

[Pealco]

I was waiting about 40 minutes to the link and after that time it went to spam…

[mensch.mueller]

Waited for my mail.
But another (nicely) done app built around three.js. Let´s wait a while, if they bring in the authoring stuff.
I just bought Verge3D for Blender, which in my opinion, is the most complete solution now.

[davideakadudu]

it was a pleasure. we have to help each other and if there are new programs, I like to share them with you my Blocs friends
